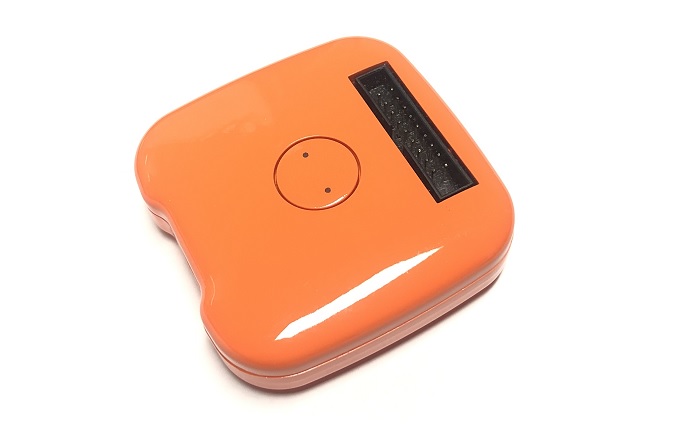

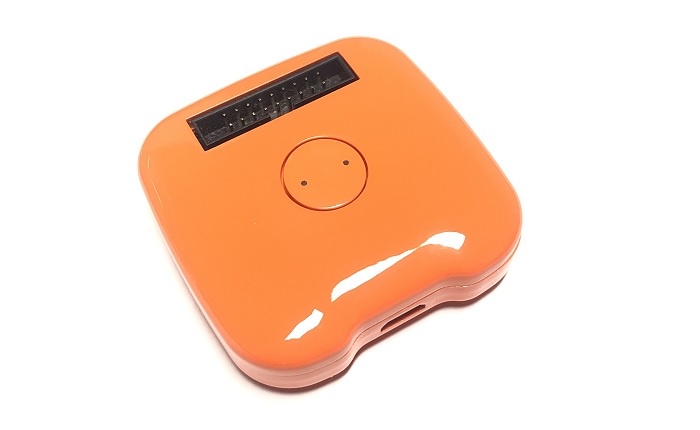

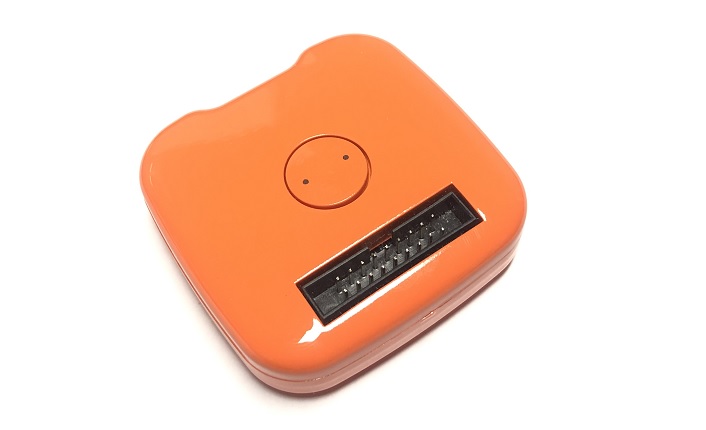

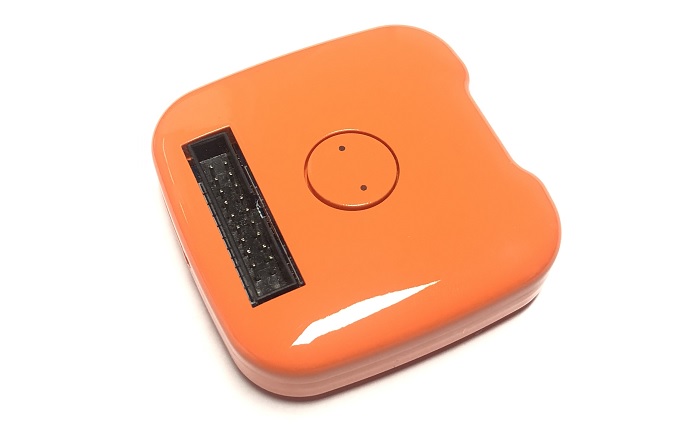

gforceoct wireless emg system

technical

low power：

● ultra-low power arm cortex m4
● bluetooth ble4.2
● power consumption below 0.1w

continuous gesture recognition：

● user-defined max 16 gestures recognition
● 9-axis motion sensor fusion

sensor：

● 8-channel differential emg input pairs
● independent reference level output lead
● 9-axis motion sensor
● real-time raw emg and motion data access
● real-time quaternion access

software sdk/api：

● support windows 7,8,10 and up
● support android 4.0 and up
● support unity3d development
● support arduino mcu

message indicator：

● double-led indicators

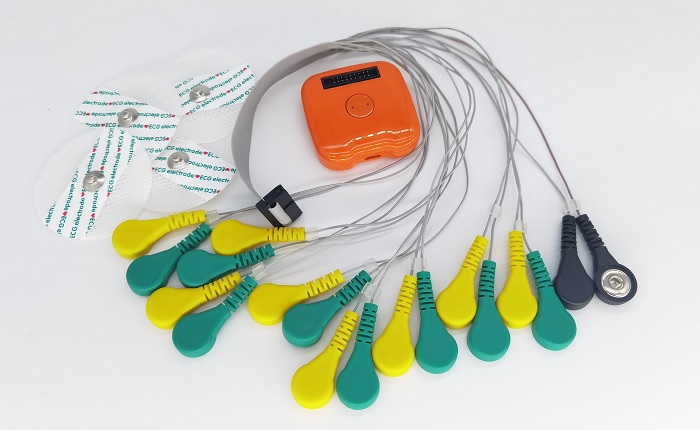

electrodes：

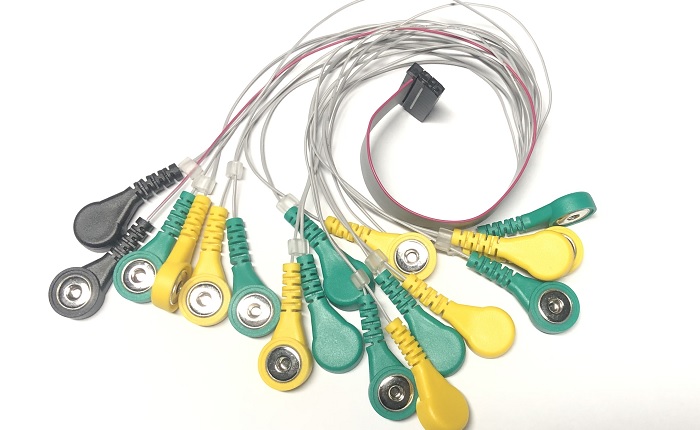

● female-button-snap lead cable

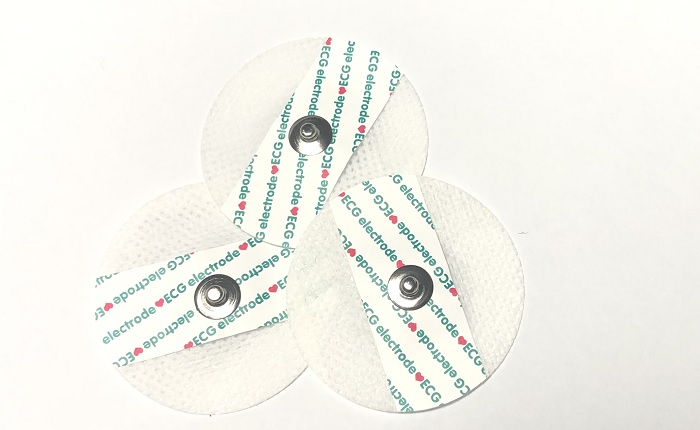

● disposable sticker as electrodes

● 8-channel real-time raw emg data acquisition
● 8bit mode max 1khz sample rate
● 12bit mode max 500hz sample rate
● support user algorithm development and emg data application

● 3-axis acc sensor
● 3-axis gyro sensor
● 3-axis magnetic sensor
● support quaternion, euler and real-time output of raw motion data

● full-function support mobile gforceapp emg gesture training platform
● raw data access through gforcedongle on windows
● support max 16 user defined gestures
